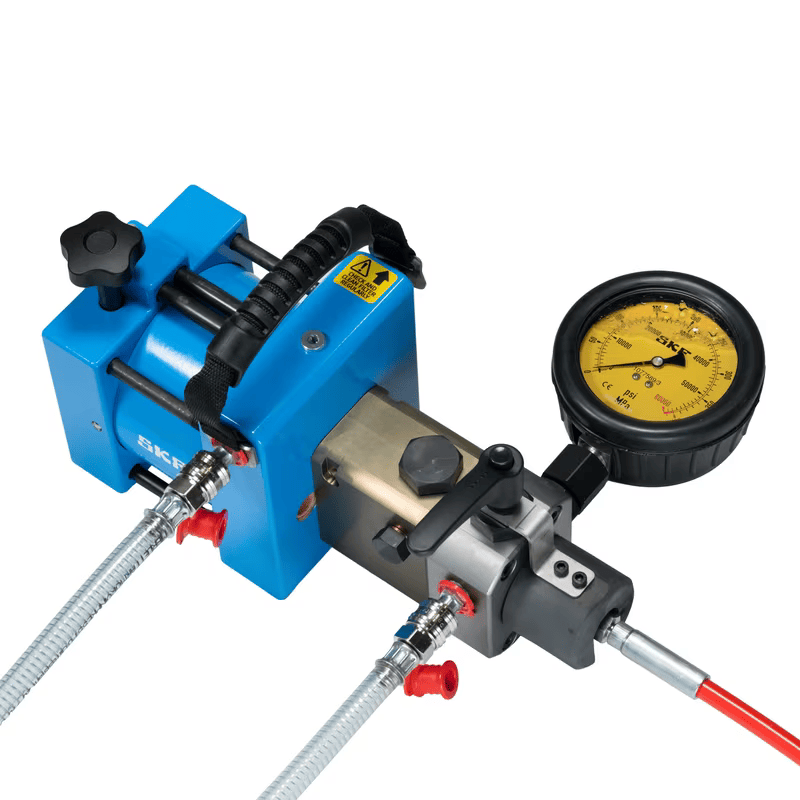

THAP 400E/K10

Air-driven pump set

The THAP 400E/K10 set consist of the THAP 400E air-driven pump with accessories, such as pressure gauge, pressure hose with quick connection couplings and connection nipples.

Delivered in a wooden carrying case it is suitable for mounting and dismounting OK-couplings, for dismounting large pressure joints like bearings, flywheels, railway wheels and in many similar applications. The is delivered with a 1 litre can SKF Mounting fluid LHMF 300.

  • Complete set for the required task at hand
  • By using air-driven pumps instead of hand- operated equipment, a considerable amount of time can be saved
  • Easy to connect to the application
  • Easy and quick generation of pressure upto 4000 bar

Dimensions

Dimensions (W x L x H) 171 x 405 x 202 mm
Case dimensions (l x h x w) 690 x 245 x 310 mm

Performance

Maximum pressure 4 000 bar
Maximum pressure 400 MPa
Add to Enquiry
SKU: THAP 400E/SK1-SKF Categories: ,
SKF

Description

Properties

Recommended applications
OK Couplings
Large pressure joints
Oil injection for large gears and railway wheels
Air pressure 3  –  7 bar
Air pressure limiter yes, at 7 bar
Volume per stroke 0.64 ml
Air consumption 200 l/min
Pressure ratio 1:667
Oil container No
Pressure gauge Yes
Oil outlet thread G 3/4
Oil viscosity (maximum) 1 500 mm²/s
Housing material
Aluminium
Alloy tool steel
Colour Blue, metallic grey
Operating temperature range 0  –  45 °C
Product weight 16.9 kg
Content
Air driven pump 400 MPa (58 000 psi)
2x Low pressure hoses with couplings(1.5 m/4.9 ft)
Air hose coupling(f)
Mounting fluid (1 ltr/0.22 gal)
Pressure gauge, 400 MPa (58 000 psi)​​​​​​​ with protection sleeve (TMJG S100)
Protection device
Nipple G3/4 male, M16x1.5 cone female, 400 MPa (58 000 psi)
High pressure hose, 400 MPa (58 000 psi), 2x M16x1.5 cone male, 2 m (6.5 ft.)
Quick connection coupling, M16x1.5 cone female, 400 MPa (58 000 psi)
Quick connection nipple, M16x1.5 cone female, 400 MPa (58 000 psi)
Nipple M16x1.5 cone male, G1/4 male, 400 MPa (58 000 psi)
Nipple M16x1.5 cone male, G3/4 male, 400 MPa (58 000 psi)
Instructions for use
Carrying case
Total product weight 21 kg

(THAP400E/K10)
