THAP 300E

SKF Air-driven oil injector (300 MPa)

The THAP 300E air-driven oil injector can be used for mounting and dismounting SKF OK Couplings, large pressure joints such as bearings, flywheels, couplings and railway wheels.

It is also suitable for similar applications for pressures up to 300 MPa/43,500 psi. The unit consists of a hydraulic pump driven by an air motor. The item is supplied in a sturdy case including oil suction and return hoses with quick connect couplings. SKF Mounting and Dismouting fluids are recommended for use with the THAP 300E.

  • Time savings compared to hand operated oil injectors
  • Portable
  • Continuous supply of oil
  • Internal air pressure limiter helps ensure safe operation
  • Low air consumption
  • Wide operating temperature range
  • Sturdy storage boxes

Dimensions

Dimensions (W x L x H) 171 x 405 x 202 mm
Case dimensions (l x h x w) 690 x 245 x 310 mm

Performance

Maximum pressure 3 000 bar
Maximum pressure 300 MPa



Add to Enquiry
SKU: THAP 300E-SKF Categories: ,
SKF

Description

Properties

Recommended applications
OK Couplings
Large pressure joints
Oil injection for large gears and railway wheels
Air pressure 3  –  7 bar
Air pressure limiter yes, at 7 bar
Volume per stroke 0.83 ml
Air consumption 200 l/min
Pressure ratio 1:500
Oil container No
Pressure gauge Optional
Oil outlet thread G 3/4
Oil viscosity (maximum) 1 500 mm²/s
Housing material
Aluminium
Alloy tool steel
Colour Blue, metallic grey
Operating temperature range 0  –  45 °C
Product weight 13 kg

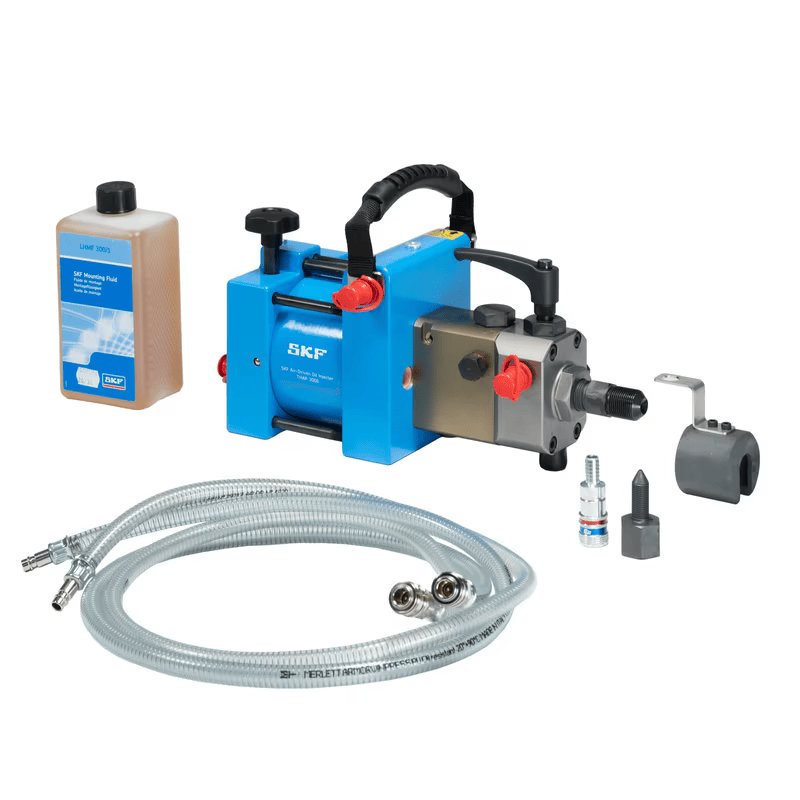

Content
Air driven pump 300 MPa (43 500 psi)
2x Low pressure hoses with couplings(1.5 m/4.9 ft)
Air hose coupling(f)
Mounting fluid (1 ltr/0.22 gal)
Instructions for use
Carrying case
Total product weight 21.5 kg
Volume per stroke 0.83 cm³

(THAP300E)

Additional information

Weight 13 kg
