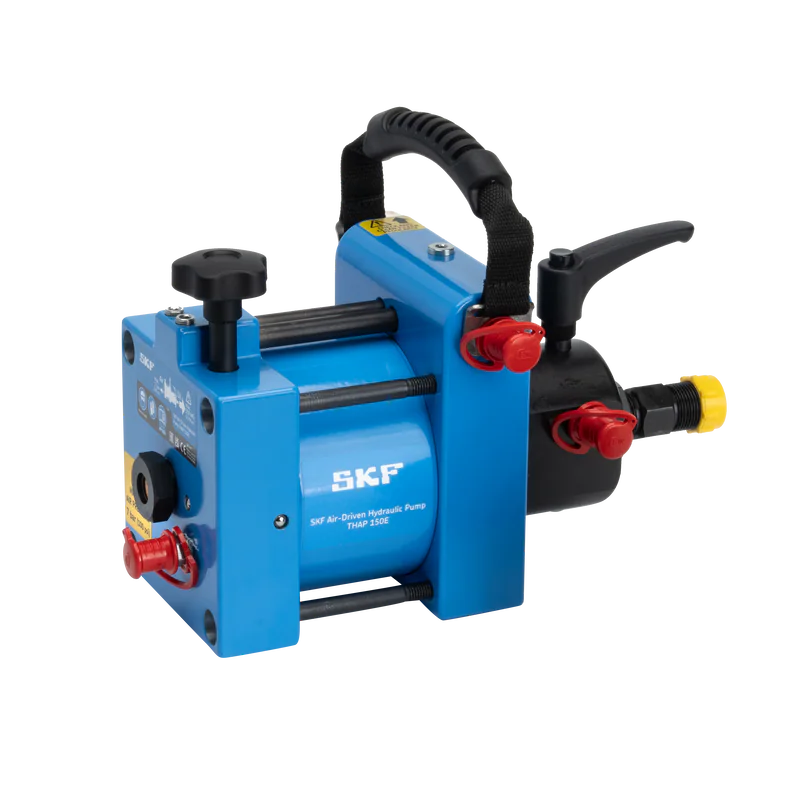

THAP 150E

SKF Air-driven hydraulic pump (150 MPa)

The THAP 150E air-driven hydraulic pump can be used for mounting SKF OK Coupling hydraulic chambers and for mounting and dismounting large rolling element bearings using the oil injection method.

It is also suitable for simlar applications for pressures upto 150 MPa/21,750 psi. The unit consists of a hydraulic pump driven by an air motor. The item is supplied in a sturdy case including oil suction and return hoses with quick connect couplings. SKF Mounting and Dismouting fluids are recommended for use with the THAP 150E.

  • Time savings compared to hand operated pumps
  • Portable
  • Continuous supply of oil
  • Internal air pressure limiter helps ensure safe operation
  • Low air consumption
  • Wide operating temperature range
  • Sturdy storage boxes

Dimensions

Dimensions (W x L x H) 171 x 350 x 202 mm
Case dimensions (l x h x w) 690 x 245 x 310 mm

Performance

Maximum pressure 1 500 bar
Maximum pressure 150 MPa
Add to Enquiry
SKU: THAP 150E-SKF Categories: ,
SKF

Description

Properties

Recommended applications
Bolt tensioners
Mounting of propellers
Oil injection for large bearing seatings
Air pressure 3  –  7 bar
Air pressure limiter yes, at 7 bar
Volume per stroke 1.92 ml
Air consumption 200 l/min
Pressure ratio 1:250
Oil container No
Pressure gauge Optional
Oil outlet thread G 3/4
Oil viscosity (maximum) 1 500 mm²/s
Housing material
Aluminium
Alloy tool steel
Colour Blue, metallic grey
Operating temperature range 0  –  45 °C
Product weight 11.5 kg
Content
Air driven pump 150 MPa (21 750 psi)
2x Low pressure hoses with couplings(1.5 m/4.9 ft)
Air hose coupling(f)
Mounting fluid (1 ltr/0.22 gal)
Instructions for use
Carrying case
Total product weight 20.2 kg
Volume per stroke 1.92 cm³

(THAP150E) (THAP 150 E)

Additional information

Weight 20.2 kg
