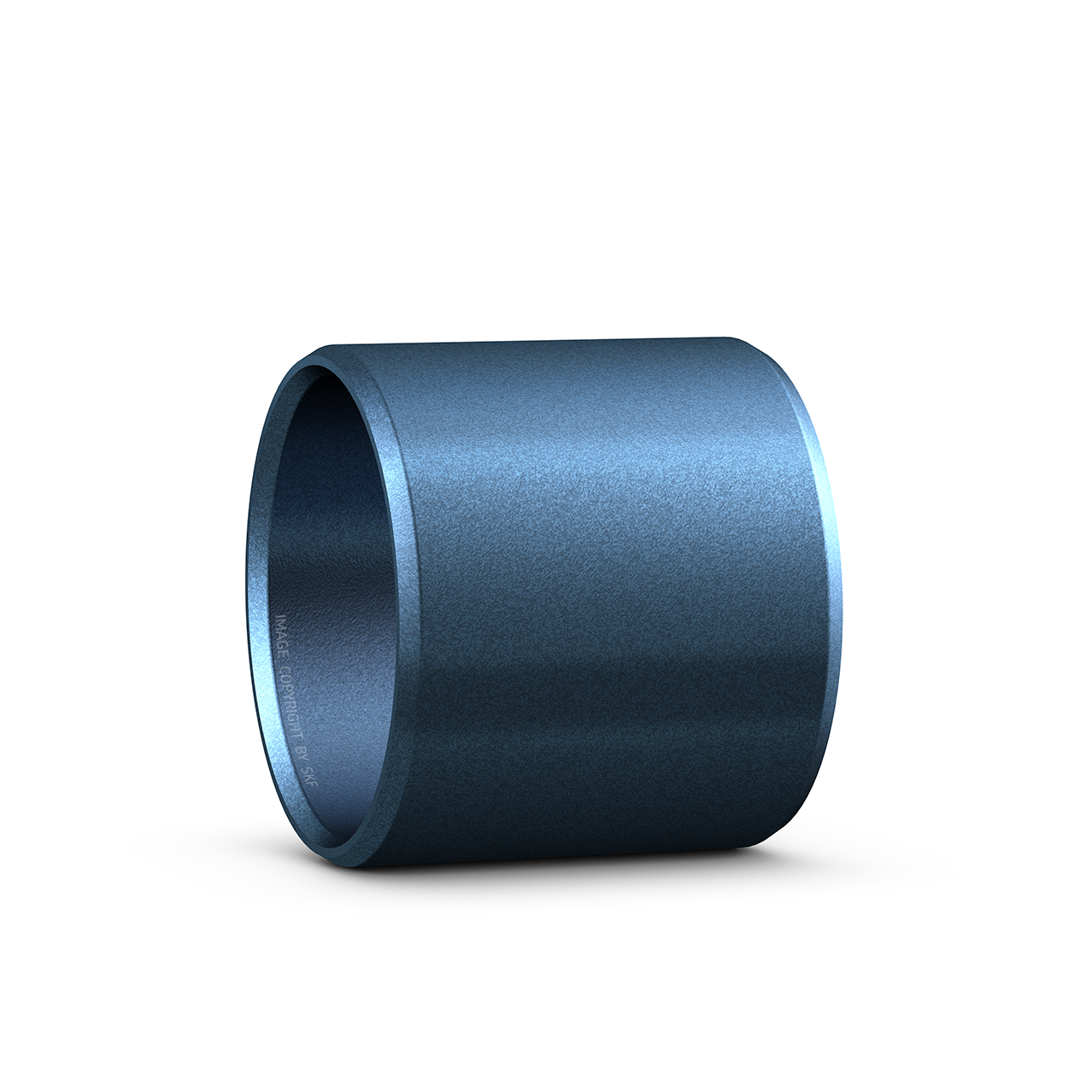

They provide a cost-effective, self-lubricating solution, and are designed for dry sliding operations. Despite their thin-walled design, they are wear-resistant and can accommodate moderate loads. Their compact design provides good heat dissipation, therefore enabling relatively high sliding velocities.
| d |
20 mm
|
Bore diameter |
|---|---|---|
| D |
23 mm
|
Outside diameter |
| B |
20 mm
|
Width |
| Tolerance shaft |
h9
|
| Tolerance housing |
H7
|
| Specific dynamic load factor | K |
40 N/mm²
|
|---|---|---|
| Specific static load factor | K0 |
80 N/mm²
|
| Permissible sliding velocity | v |
max.1 m/s
|
| Coefficient of friction | µ |
min.0.06
|
| Coefficient of friction | µ |
max.0.15
|
| Design | Straight |
| Material | PTFE polyamide |
| Relubrication feature | Without |
| Operating temperature |
min.-30 °C
|
| Operating temperature |
max.110 °C
|
| Product net weight | 0.003 kg |
| eClass code | 23-05-01-90 |
| UNSPSC code | 31171605 |
(PPM202320)
| Weight | 0.003 kg |
|---|---|
| Size (mm) | |
| Colour |
