PHS 80-3C45

Generic number: 80-3C45

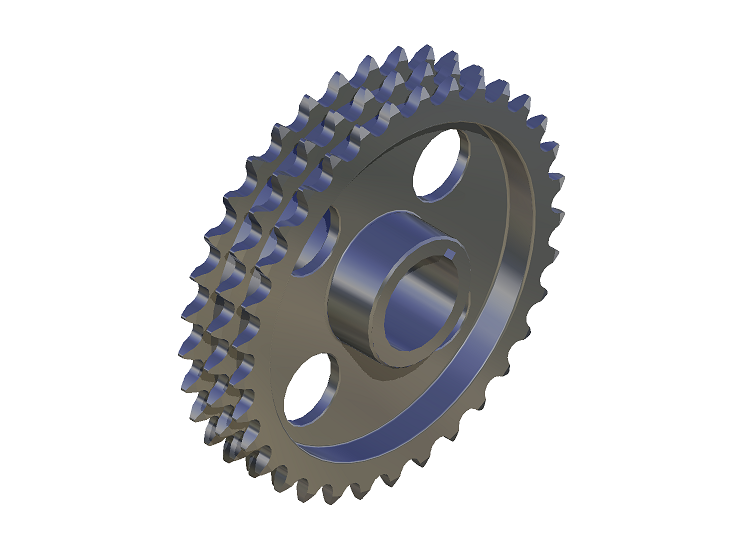

SPROCKET ANSI SERIES
Sprockets – Standard
SKF sprockets are manufactured to DIN/BS/ISO and ANSI standards. Simplex, duplex and triplex sprockets available from stock in pilot bore and taper bushed. Sprockets 25 teeth and under are hardened as standard.
Standard: ANSI
Type: C
Pitch(in): 1
Pitch(mm): 25.4
Number of teeth: 45
Outside Diameter(mm): 378.46
Hub Diameter(mm): 152.4
Overall Width Hub L (mm): 114.3
Max bore(mm): 96.77
Min bore(mm): 31.75
Bushing No.:
Material: Steel
EAN 13 Number: 7316572796313
