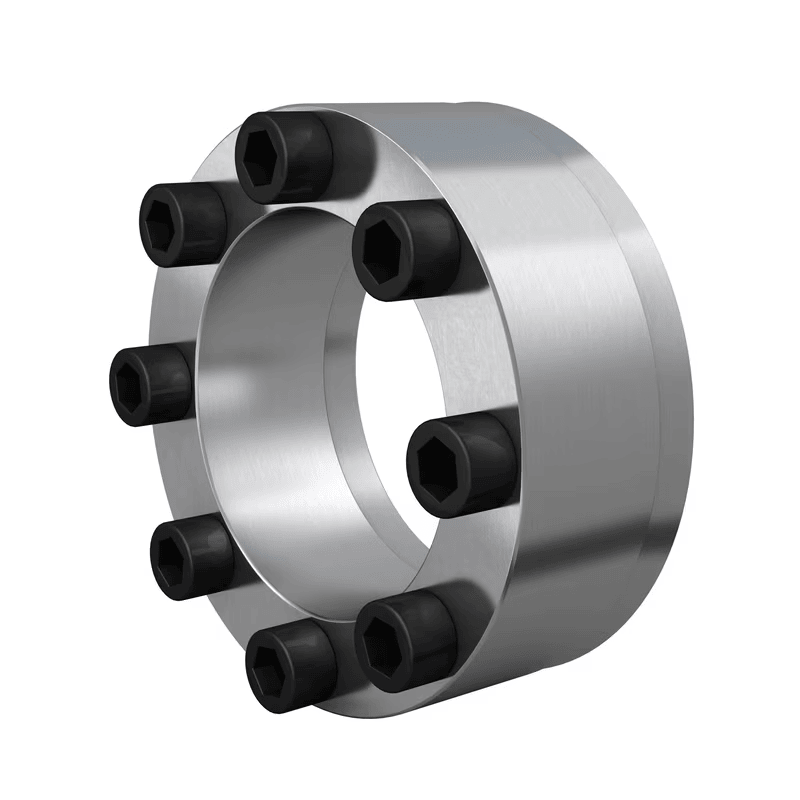

With no keyway required, the shaft size can usually be reduced and only minimal machining is required. Installation is as simple as sliding the bushing into place and tightening it with the clamp screws.
| Bore diameter | 40 mm |
| Contact width | 15 mm |
| Element width | 22 mm |
| Outside diameter | 62 mm |
| Width, total | 28 mm |
| Bushing number | FX120 |
| Number of clamp screws | 12 |
| Transmissible Torque(Nm) | 780 |
| Shaft Surface Pressure(N/mm²) | 170 |
| Hub Surface Pressure (N/mm²) | 100 |
| Clamp screws Qty | 12 |
| Clamp screws Size | M6 |
| Screw Tightening Torque(Nm) | 16 |
| Weight | 0.27 kg |
|---|---|
| Colour |
