PHE 1060TGH

Generic number: 1060TGH, 1060T10, GF2060H, 1060H, 2060H

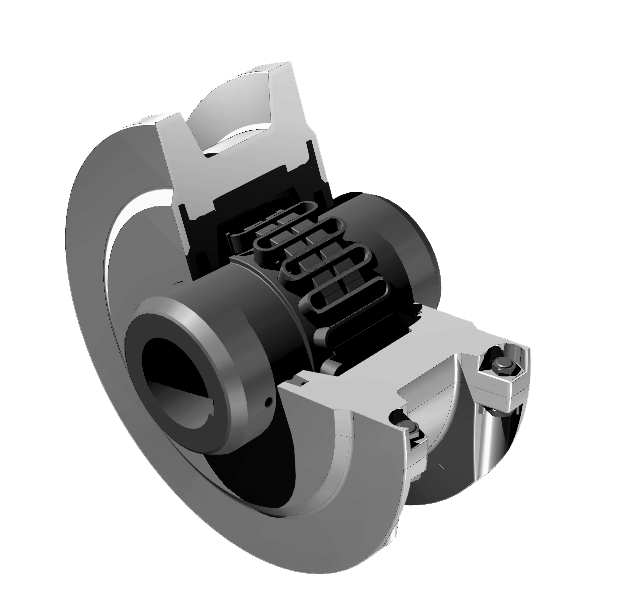

GRID COUPLING SET
Grid couplings
Combines the torque capacity of gear couplings with the torsional flexibility of elastomer couplings. The metallic grid coupling offers up to 30% damping effect – unique to this coupling class.
Size: 1060
Component: HUBS, GRID, COVER
Coupling Speed Max(r/min): 4500
Bore Diameter Min(mm): 19
Bore Diameter Max(mm): 57
Coupling Nominal Torque(Nm): 684
OD(mm): 150.5
Length(mm): 130.0
Remark: Product comes with solid bore as standard
