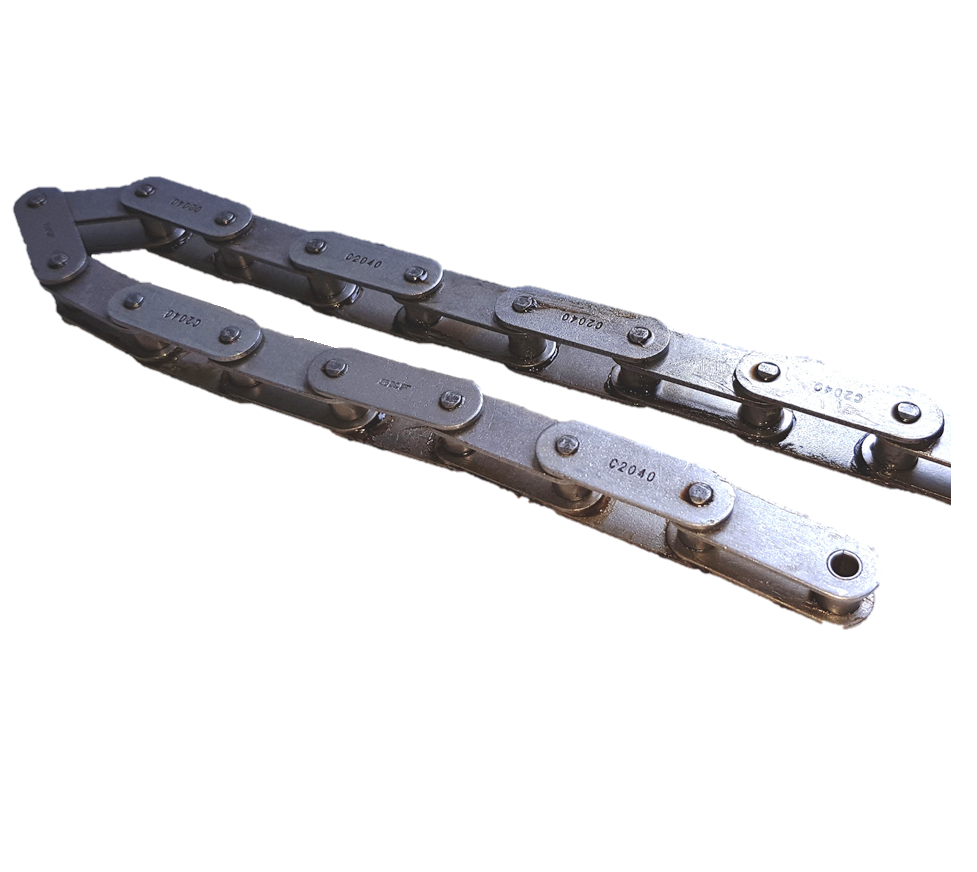

PHC C2162HX10FT
Conveyor Chain
Conveyor Chains are engineered to ensure seamless material handling in conveyor systems.
With only half the number of pins, bushes and rollers this series is lower cost and lighter than standard roller chains of the same strength. Designed with precision and employing double pitch chains with straight sidebar plates, the chains offer optimal performance and longevity. The chains undergo rigorous manufacturing processes, including heat treatment for enhanced strength and wear resistance.
- Ensures seamless transmission of power within conveyor systems
- Double pitch chain that uses straight sidebar plates
- Trusted across industries for their reliability and adaptability
Dimensions
| Pin diameter max |
14.27 mm |
| Pitch |
101.6 mm |
| Plate height max |
47.8 mm |
| Plate thickness max |
7.2 mm |
| Roller diameter max |
57.15 mm |
| Width between inner plates min |
31.75 mm |
