PHC 100H-2CX10FT

Generic number: 100H-2CX10FT

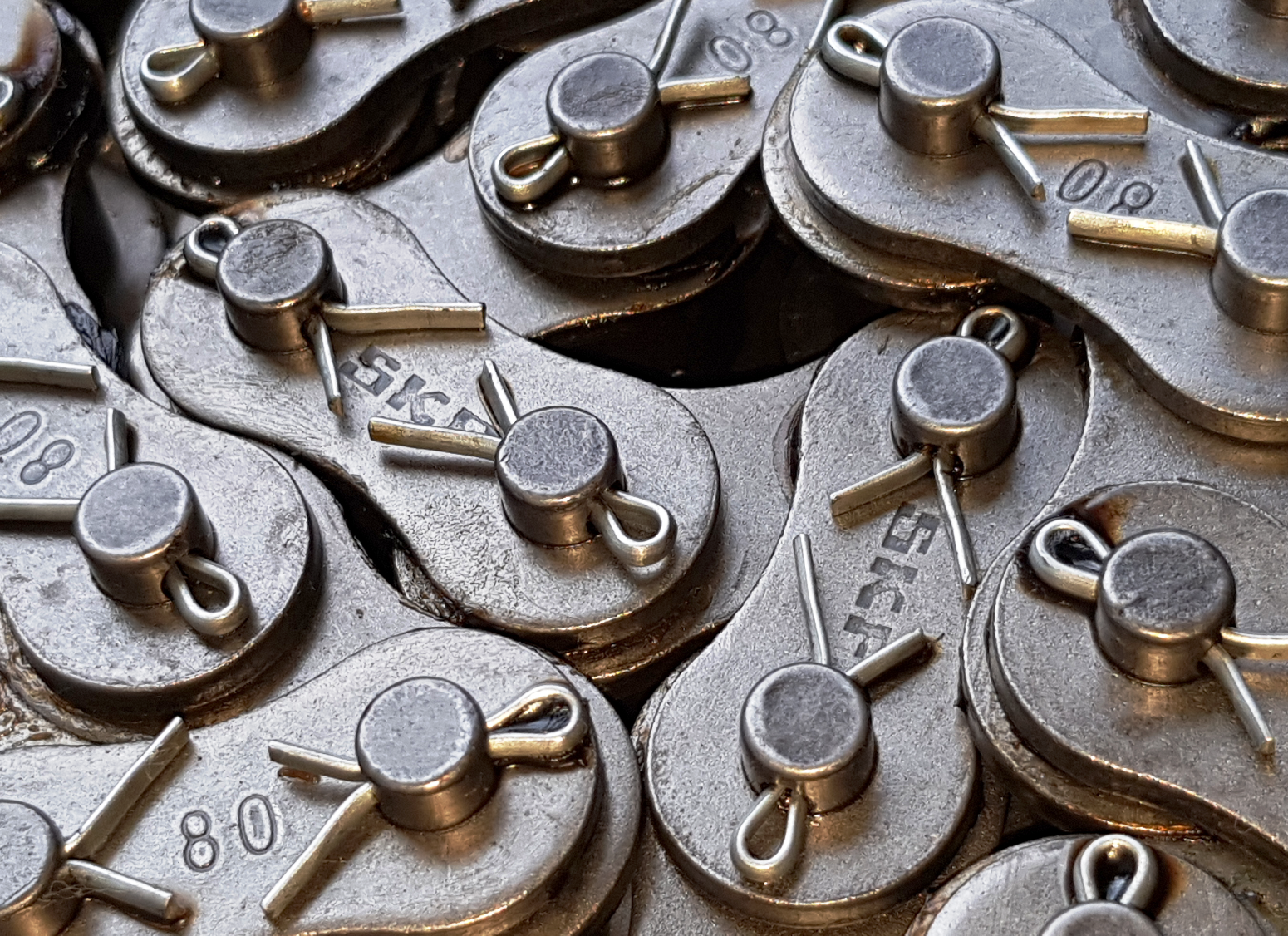

ANSI HD ROLLER CHAIN COT 2 STRAND
SKF Xtra Strength series Chains (DIN/BS,ANSI Standards)
Xtra heavy-duty roller chains have higher maximum allowable loads, greater shock absorption, higher fatigue and tensile strengths than standard roller chains.
Chain No.: 100H-2C
Type: ANSI
Pin Diameter Max(mm): 9.53
Pitch(mm): 31.75
Plate Height Max(mm): 30
Plate Thickness Max(mm): 4.8
Roller Diameter Max(mm): 19.05
Width Between Inner Plates Min(mm): 18.9
EAN 13 Number: 7316572613122
