NKI 95/36

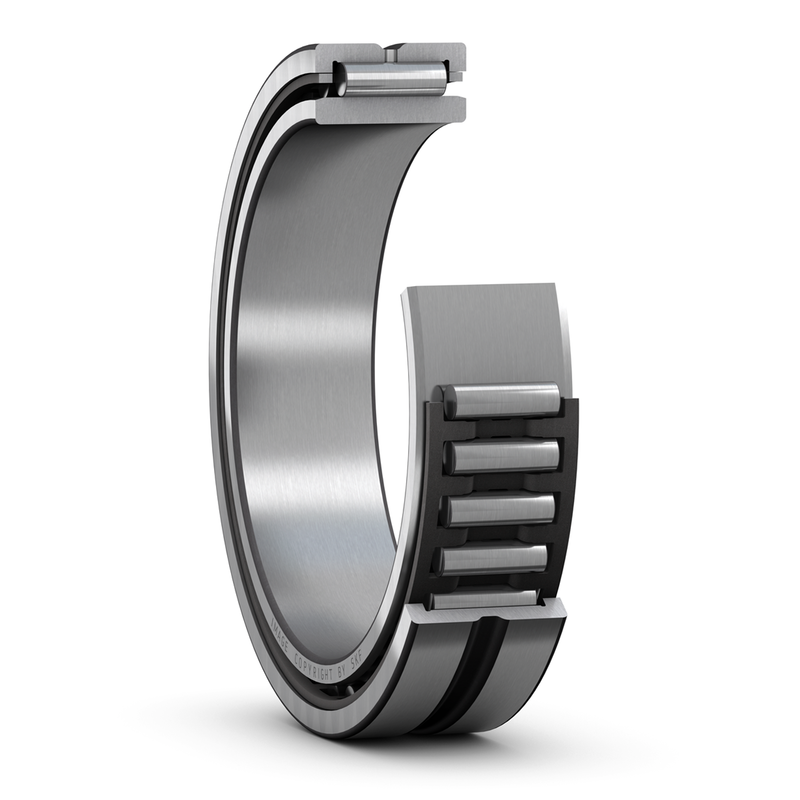

Single row needle roller bearing with machined rings, with flanges
Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length.
Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.
- High radial load carrying capacity
- High stiffness
- Low cross-sectional height
- Accommodate axial displacement in both directions
- Separable design
Dimensions
| d |
95 mm
|
Bore diameter |
| D |
125 mm
|
Outside diameter |
| B |
36 mm
|
Width |
| F |
105 mm
|
Raceway diameter inner ring |
| r1,2 |
min.1 mm
|
Chamfer dimension outer ring |
| s |
max.1.5 mm
|
Permissible axial displacement from the normal position of one bearing ring relative to the other |
Abutment dimensions
| da |
min.100 mm
|
Smallest permissible abutment diameter shaft, bearings with flanges |
| Da |
max.120 mm
|
Diameter of housing abutment |
| ra |
max.1 mm
|
Fillet radius |
Calculation data
| SKF performance class |
|
SKF Explorer
|
| Basic dynamic load rating |
C |
129 kN
|
| Basic static load rating |
C0 |
265 kN
|
| Fatigue load limit |
Pu |
32.5 kN
|
| Reference speed |
|
3 800 r/min
|
| Limiting speed |
|
4 300 r/min
|
