LAGG 18AE

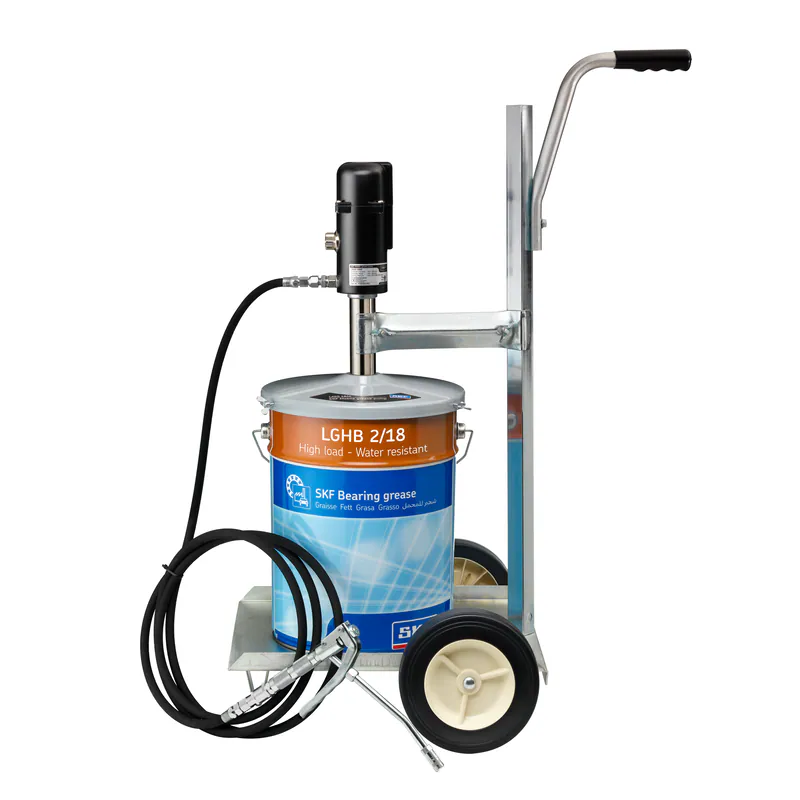

SKF Grease Pump LAGG 18AE

The air-operated grease pump SKF LAGG 18AE is designed to supply grease at high pressure from a 18 kg drum.

This is useful when large housings have to be filled or when numerous points have to be lubricated. The air-operated pump can also be used to top up centralised lubrication system reservoirs. The LAGG 18AE is designed for mobility and convenience and supplied with a trolley.

  • High pressure with air-driven pump
  • Tested and approved for SKF greases in 18 kg drums
  • Easy transportable with included trolley
  • Easy and ready to use
  • Long tubing included
Add to Enquiry
SKU: LAGG18AE-SKF Categories: , , ,
SKF

Description

Properties

Recommended applications
grease pump for drums or pails designed for high pressure applications
can be connected directly on greasing points
suitable for filling centralised lubricating grease systems
For type/size of grease drum 18 kg grease pail
Operation mobile air operated grease pump
Mobility mobile (trolley included)
NLGI class of lubricant (max) 2
Connection
greasing point: DIN 71412
airinlet connector: CEJN 10-320-5152
Maximum pressure 42 MPa
Maximum Pressure 420 bar
Suitable drum inner diameter 265.0  –  285.0 mm
Suitable drum inside height (max) 420 mm
Air pressure 3.0  –  8.0 bar
Pressure ratio 1:55
Hose Yes, 3.5 Meter
Power source pneumatic
Material steel, rubber hose, plastic wheels
Material handle steel
Ambient temperature range 5.0  –  50.0 °C
Recommended storage temperature 10.0  –  40.0 °C
Relative humidity < 65 %
Content grease pump with pump handle, drum cover plate, drum followerplate, high pressure hose, swivel gun with extension pipe, trolley
Total product weight 18.4 kg

Recommended product

SKF Grease Meter LAGM 1000E LAGM 1000E

(LAGG 18 AE) (LAGG18AE)

Additional information

Weight 20.5 kg
