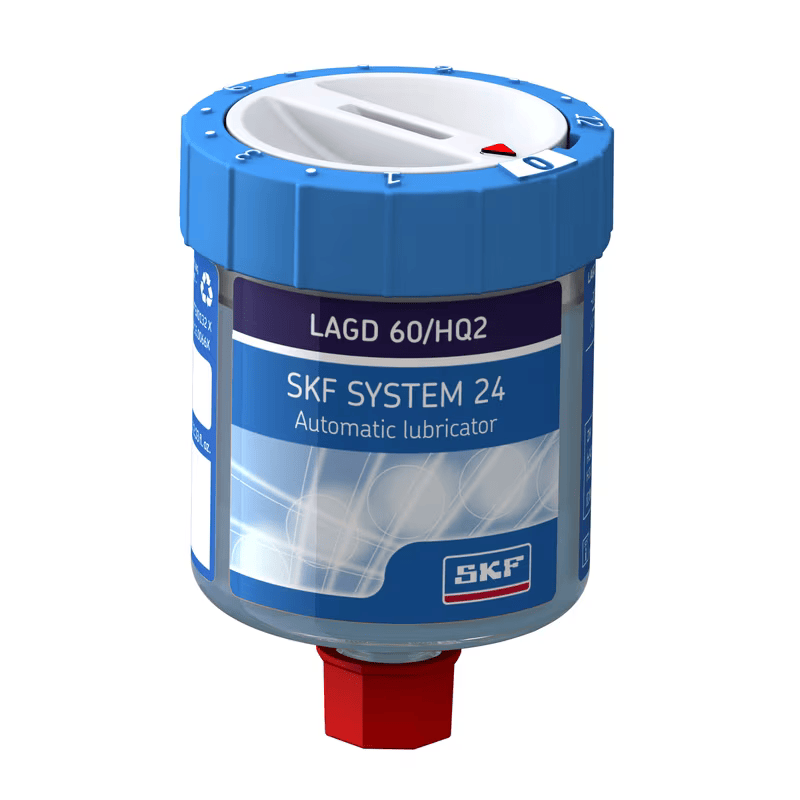

LAGD 60/HQ2

SKF SYSTEM 24 gas driven single point automatic lubricator

LAGD 60/HQ2 is filled with SKF LGHQ 2 grease for high temperatures and high speeds recommended for electric motors, fans and pumps.

SKF gas driven single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants or empty, suitable for filling with oil. With tool-free activation and time-setting they allow easy, safe and accurate relubrication.

  • Flexible dispense rate from 1 to 12 months
  • ATEX zone 0 approved
  • Transparent lubricant container allows visual inspection of dispense rate
  • Compact size, suitable for restrictive areas
  • Improved reliability and optimized maintenance

Dimensions

Lubricant quantity 60 ml

Performance

Nominal emptying time Adjustable, 1–12 months
Maximum pressure 5 bar
Maximum feed line length 0.3 m
Product weight 0.12 kg
Degree of protection (IP) IP 68
Add to Enquiry
SKU: LAGD 60/HP2-SKF Categories: ,
SKF

Description

Properties

Lubricant LGHQ 2
Lubricant description Wide temperature range electric motor bearing grease
Lubricant operating temperature range –30 to +160 °C
Ambient temperature range -20  –  60 °C
Recommended applications
Electric motors
Industrial fans
Water pumps
Vertical shaft applications
Drive mechanism Gas cell producing inert gas
Connecting thread R 1/4
Intrinsically safe approval II 1G Ex ia IIC T6 Ga, II 1D Ex ia IIIC T200 85°C Da, I M1 Ex ia I Ma
Power source Gas cell
Recommended storage temperature 20 °C

(LAGD60/HQ2) (replaces LAGD 60/HP2)

Additional information

Weight 0.12 kg
Colour
