HM 42 T

Lock or dismounting nut with metric trapezoidal thread

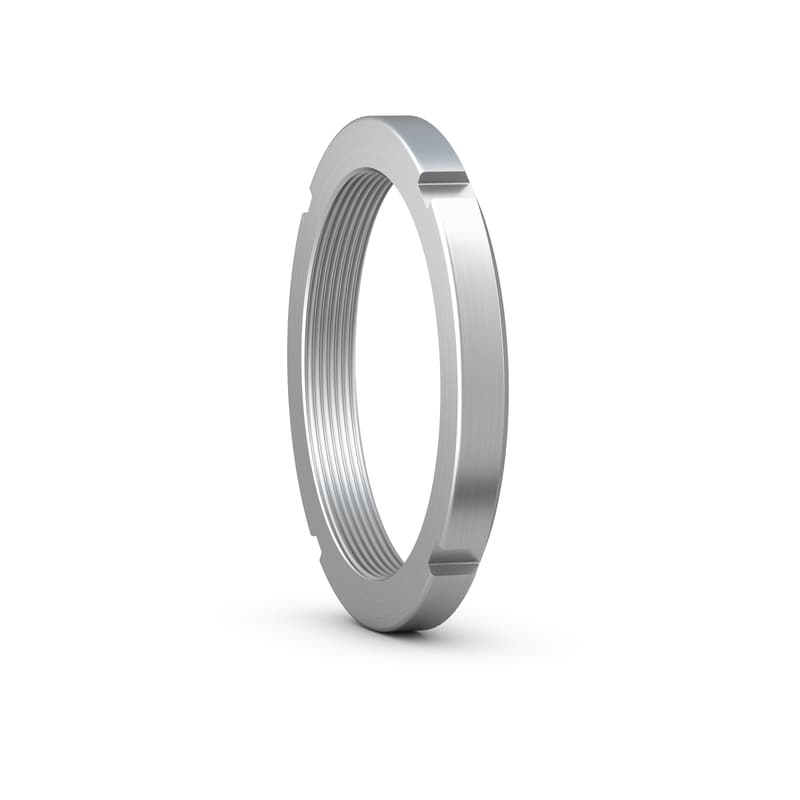

HM .. T lock nuts are used to locate bearings onto a shaft and as dismounting nut for withdrawal sleeves.

They have metric trapezoidal threads and four equally spaced slots located around their circumference to accommodate an impact spanner. They should be locked by a lock washer to prevent unintentional loosening. HM .. T lock nuts can be reused, provided they are not damaged.

  • Simple, stable and reliable fastening element
  • Easy to install and remove
  • Reusable with new lock washer
  • Wide range of sizes

Dimensions

G
Tr 210×4
 Thread
d3
270 mm
 Outside diameter
B
30 mm
 Width
d1
238 mm
 Diameter locating side face
b
20 mm
 Width locating slot
h
10 mm
 Depth locating slot

Mounting information

Associated spanner
TMFN 40-52
Add to Enquiry
SKU: HM 42 T-SKF Categories: , ,
SKF

Description

Properties

Locking device None
Nut for hydraulic mounting No
Associated mounting tool TMFN 40-52

Logistics

Product net weight 4.27 kg
eClass code 23-11-07-05
UNSPSC code 31163218

(210X270X30) (HM42T)

Additional information

Weight 4.27 kg
