HJ 1044

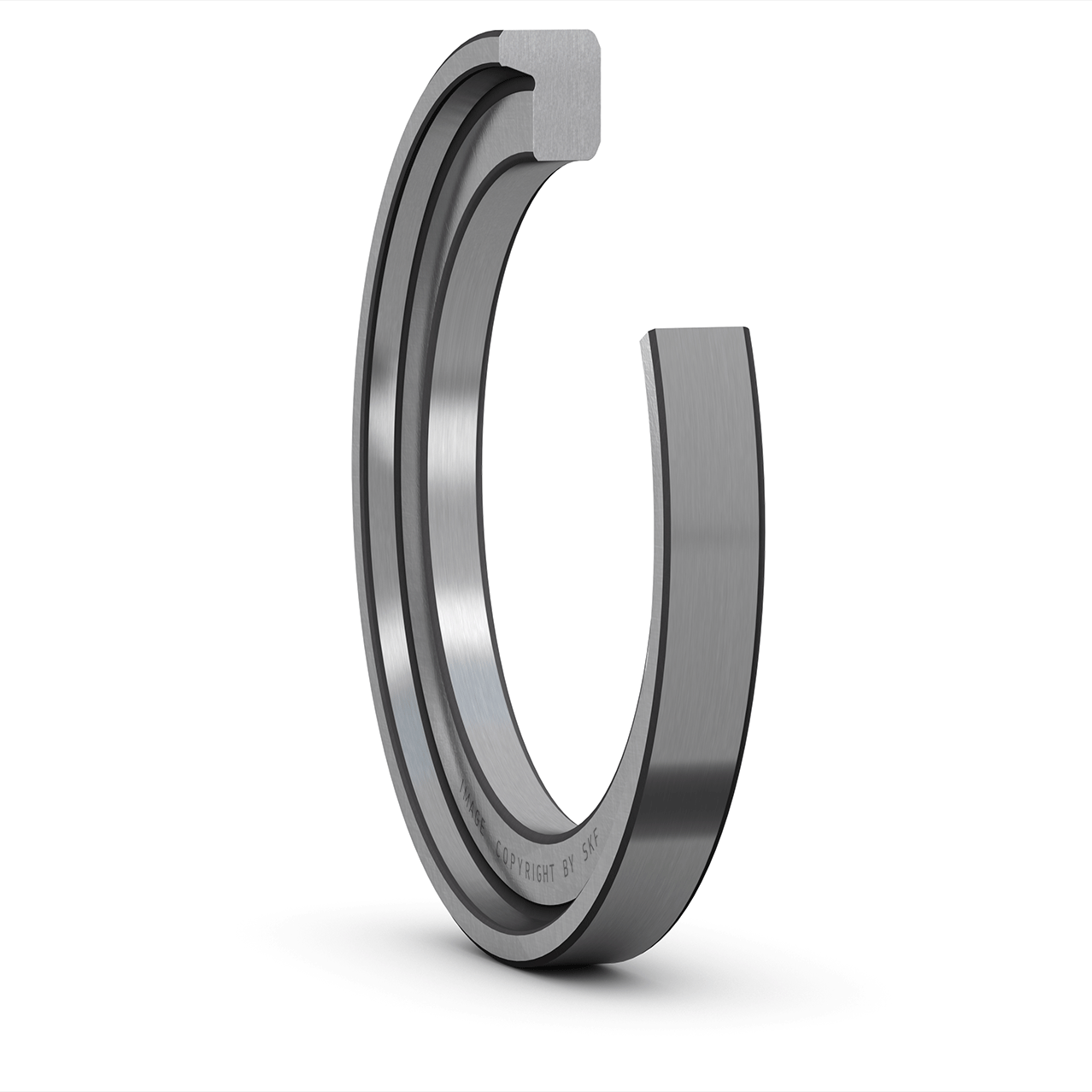

Angle ring (L-shaped thrust collar) for single row cylindrical roller bearings, NU or NJ design

Angle rings (L-shaped thrust collars) are used either with NU design cylindrical roller bearings to locate the shaft axially in one direction, or with NJ design bearings to locate the shaft axially in both directions.

The rings are made of carbon chromium steel and are hardened and ground. They are supplied as separate components.

  • Locate the shaft axially if there are no NJ or NUP design locating bearings within the product range
  • Provide an extended inner ring seat for heavily loaded bearings in the locating position
  • Simplify design or mounting procedures

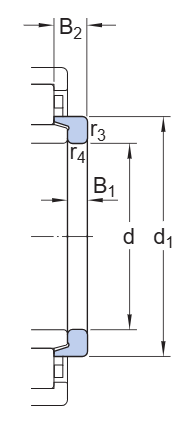

Dimensions

d
220 mm
 Bore diameter
d1
≈262 mm
 Outside diameter
B1
14 mm
 Width contacting inner ring side face
B2
27 mm
 Width
r3,4
min.3 mm
 Chamfer length radial direction (angle rings)
Add to Enquiry
SKU: HJ 1044-SKF Categories: ,
SKF

Description

Properties

Material Bearing steel
Coating Without
Indicative product carbon footprint to manufacture 7.78 kg CO2e

Logistics

Product net weight 2.16 kg
eClass code 23-05-09-01
UNSPSC code 31171505

(220X262X14) (HJ1044)

Additional information

Weight 2.16 kg
