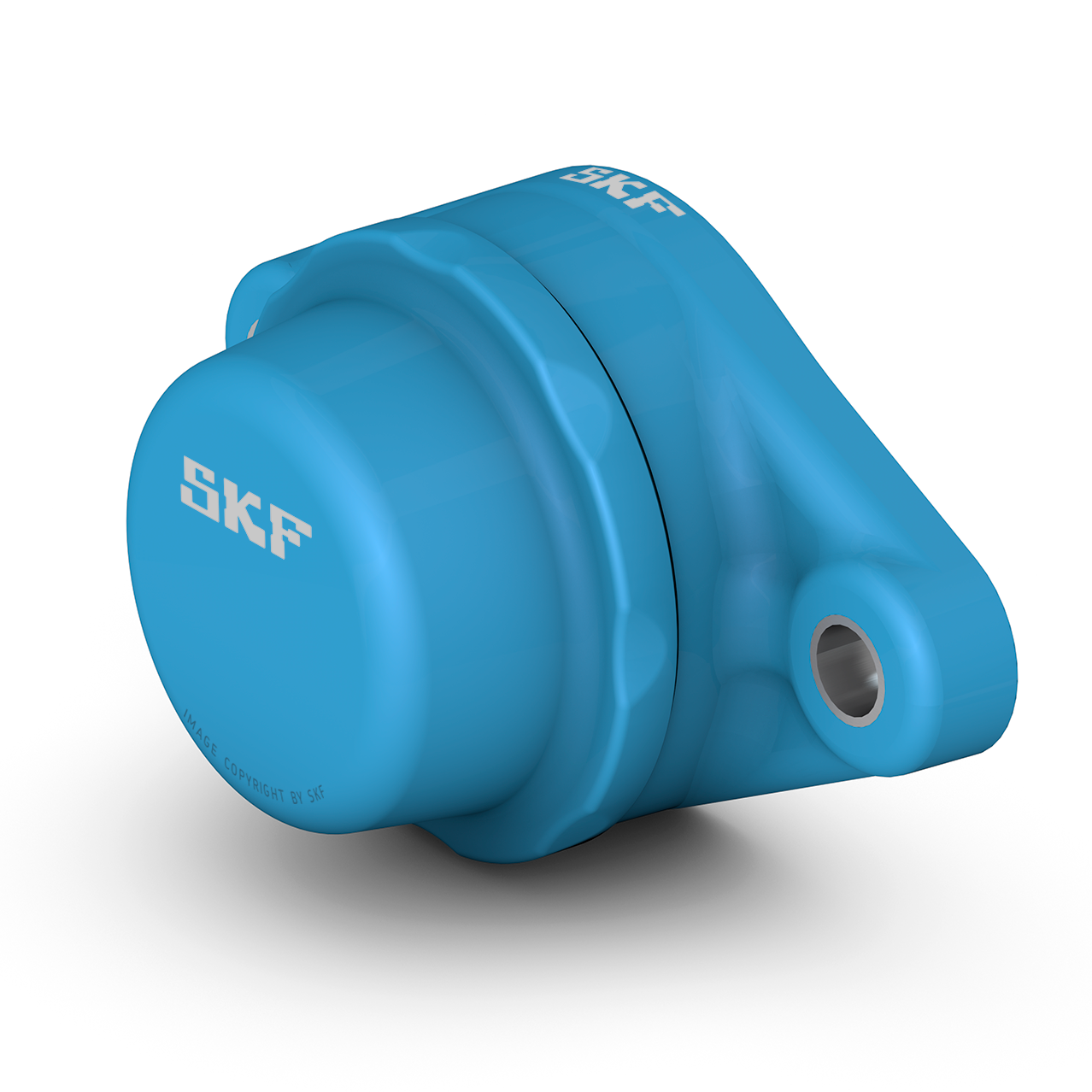

F2BC 25M-CPSS-DFH

 Oval flanged ball bearing unit with set screw locking and narrow inner ring, composite housing, SKF Food Line

These oval flanged ball bearing units are designed especially for the food and beverage industries.

They are chemical resistant, lightweight and strong. The unit consists of an insert bearing, with a narrow inner ring and set screw locking, and is suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a composite housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

  • Chemical resistant
  • Lubricated for life with a non-toxic food grade grease
  • Lightweight
  • Strong

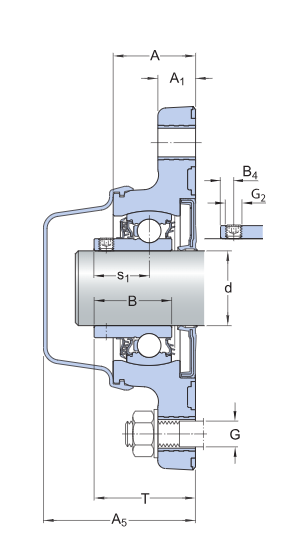

Dimensions

d
20 mm
 Bore diameter
d1
≈28.2 mm
 Outer diameter of inner ring
A
27 mm
 Width of housing
A1
15 mm
 Flange width
A5
54.1 mm
 Width including end cover
B
25.3 mm
 Width of inner ring
B1
25.3 mm
 Overall bearing width
B4
4.5 mm
 Distance from locking device side face to thread centre
Db
59 mm
 Top external diameter
Dc
52 mm
 Diameter of housing centering recess
H
119 mm
 Overall height
Ha
6 mm
 Depth of housing centering recess
J
90 mm
 Distance between attachment bolts
L
62 mm
 Overall length
N
11.5 mm
 Diameter of attachment bolt hole
s1
18.3 mm
 Distance from locking device side face to raceway centre
T
34.8 mm
 Overall width

Calculation data

Basic dynamic load rating C
10.8 kN
Basic static load rating C0
6.55 kN
Fatigue load limit Pu
0.28 kN
Limiting speed
700 r/min
Add to Enquiry
SKU: F2BC 25M-CPSS-DFH-SKF Categories: ,
SKF

Description

Properties

Housing type Flanged
Flanged housing type Oval
Number of bolt holes for fasteners 2
Fastening bolt hole type Plain
Retaining feature, inner ring Set screws
Bore type Cylindrical
Rubber seating ring Without
Material, housing Composite for the SKF Food Line
Material, bearing Stainless steel
Coating Without
Sealing, bearing Seal on both sides and flinger on one side
Sealing type Contact, gutter
Sealing, unit End cover and back seal
Lubricant Grease
Relubrication hole Without
Grease fitting Without
Compliance with standard
Not standardized
Purpose specific
For food and beverage applications
Material, housing
Composite for the SKF Food Line
Sealing, bearing
Seal on both sides and flinger on one side
Sealing type, bearing
Contact, gutter
Sealing, unit
End cover and back seal
Coating
Without

Mounting information

Set screw G2
M6x0.75
Hexagonal key size for set screw
3 mm
Recommended tightening torque for set screw
4 N·m
Recommended diameter for attachment bolts, mm G
10 mm
Recommended diameter for attachment bolts, inch G
0.375 in

(F2BC25MCPSSDFH) (F2BC25M-CPSS-DFH) (F2BC25MCPSS-DFH)

Additional information

Weight 0.249 kg
