Features
• At least 30% lower friction

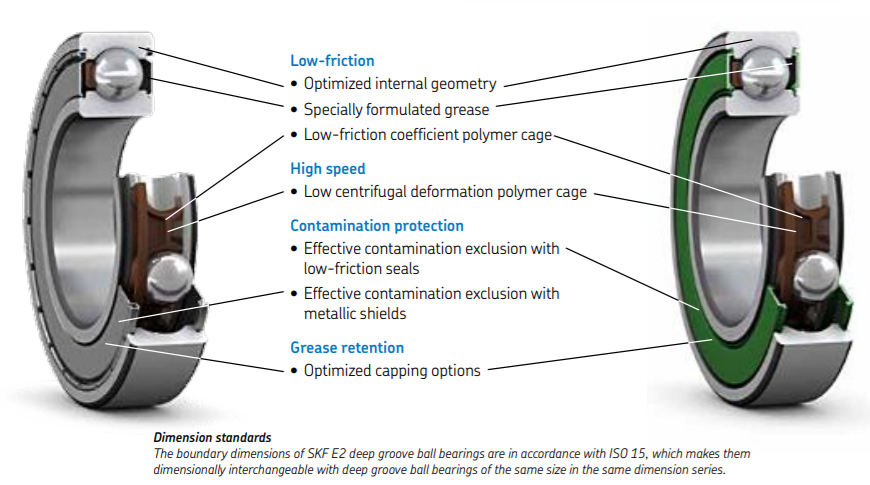

• Optimized internal geometry
• Long life, low-friction grease
• Low-friction seals or metallic shields
• Low-friction cage, optimized for improved lubrication
• Dimensionally interchangeable with standard bearings
Benefits
• Lower total cost of ownership
• Reduced energy use
• Longer bearing service life
• Reduced operating temperature
• Higher speed capability
| Bore diameter | 15 mm |
| Outside diameter | 32 mm |
| Width | 9 mm |
| Basic dynamic load rating | 5.53 kN |
| Basic static load rating | 2.75 kN |
| Reference speed | 50 000 r/min |
| Limiting speed | 28 000 r/min |
| Filling slots | Without |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Bore type | Cylindrical |
| Cage | Non-metallic |
| Matched arrangement | No |
| Radial internal clearance | C3 |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Shield on both sides |
| Sealing type | Non-contact |
| Lubricant | Grease |
| Relubrication feature | Without |
| Product net weight | 0.0293 kg |
| eClass code | 23-05-08-01 |
| UNSPSC code | 31171504 |
(15X32X9)
