CYS 35 FM

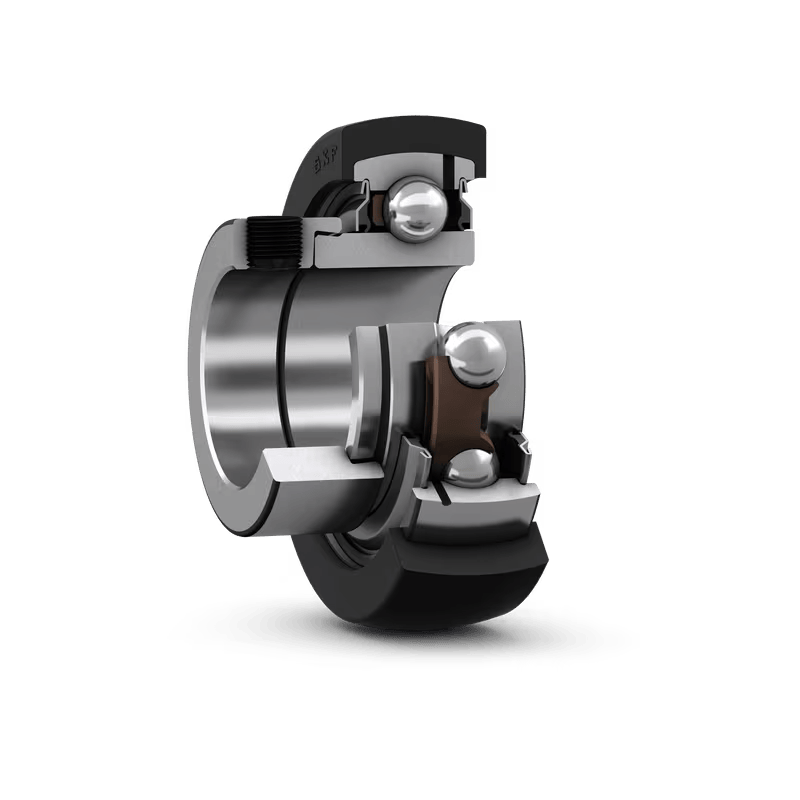

Insert bearing with pre-fitted rubber seating ring
Insert bearings in the YET 2 series, supplied with already fitted rubber seating rings. Located between the bearing outer ring and housing bore, the rubber seating ring dampens vibration and noise and enables the bearings to be displaced slightly in their housings and to accommodate minor shaft expansion or misalignment.
- Quick and easy to mount onto the shaft
- Accommodate static initial misalignment
- Long service life
- Reduced noise and vibration levels

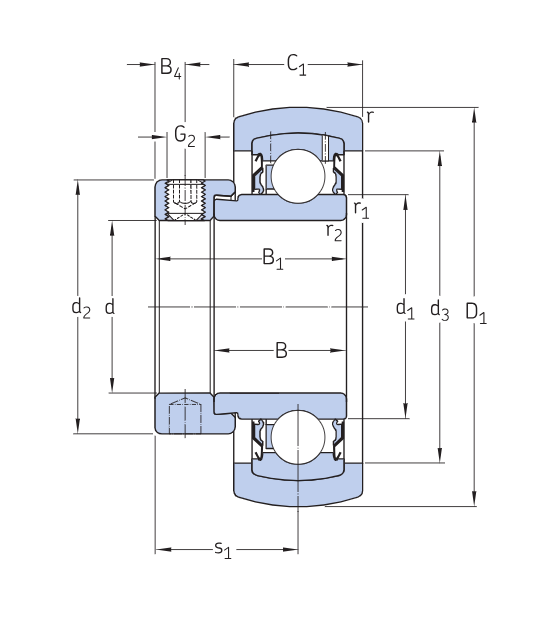

Dimensions
| d |
35 mm
|
Bore diameter |
| D |
72 mm
|
Outside diameter |
| D1 |
80.3 mm
|
Outside diameter rubber seating ring |
| B1 |
38.9 mm
|
Overall bearing width |
| B |
25.4 mm
|
Width of inner ring |
| C |
19 mm
|
Width of outer ring |
| C1 |
23 mm
|
Outer width rubber seating ring |
| d1 |
≈46.1 mm
|
Outside diameter of inner ring |
| d2 |
51.1 mm
|
Outside diameter of locking collar |
| d3 |
63.7 mm
|
Inner diameter rubber seating ring |
| B4 |
6.75 mm
|
Distance from side face to thread centre |
| r1,2 |
min.1 mm
|
Chamfer dimension of inner ring |
| r |
min.1.5 mm
|
Chamfer radius rubber seating ring |
| s1 |
29.4 mm
|
Distance from locking device side face to raceway centre |
Calculation data
| Basic dynamic load rating |
C |
25.5 kN
|
| Basic static load rating |
C0 |
15.3 kN
|
| Fatigue load limit |
Pu |
0.655 kN
|
| Limiting speed |
|
5 300 r/min
|
|
|
Limiting speed with shaft tolerance h6
|
| Calculation factor |
f0 |
14
|
