C 6915-2CS5V/C3

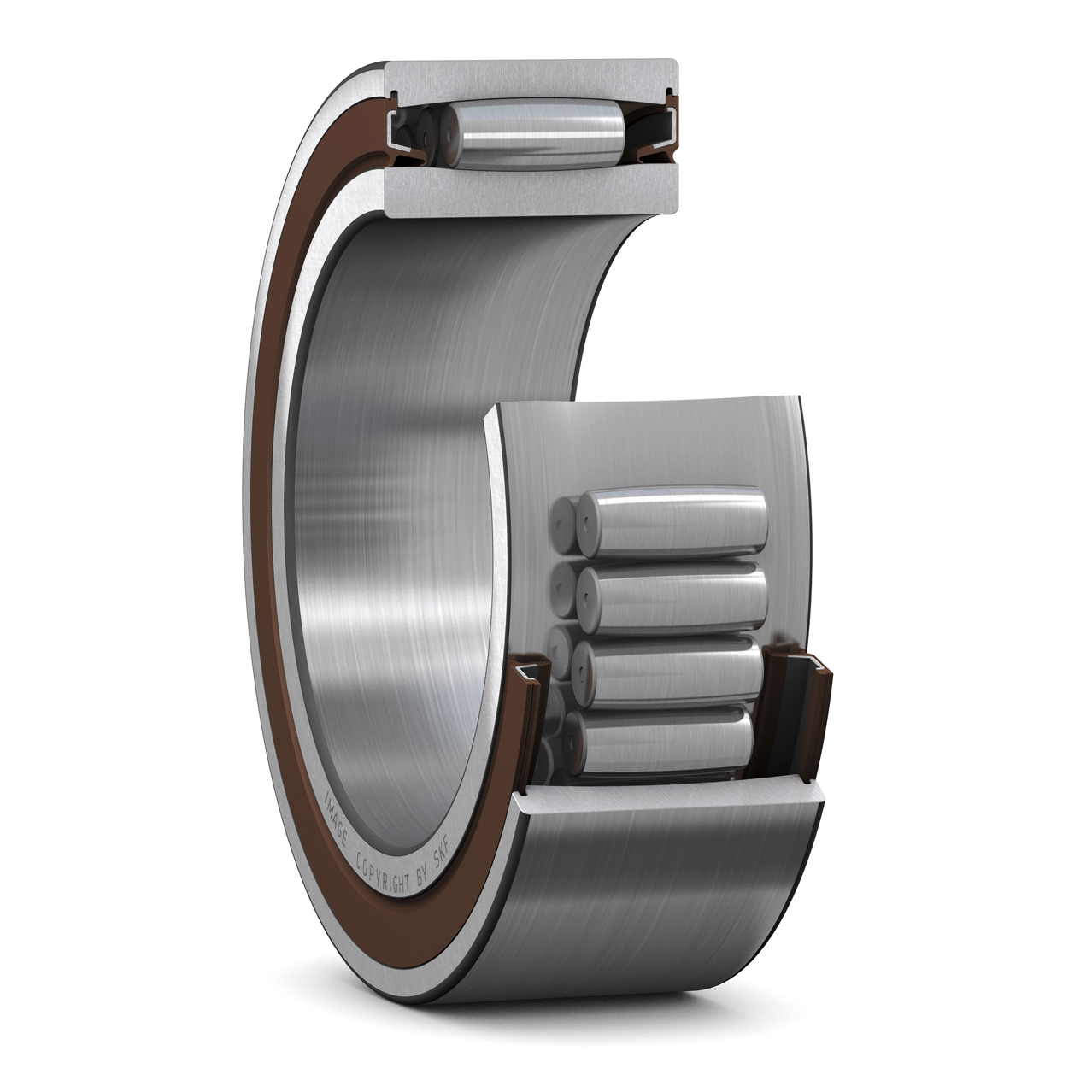

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements.

This full complement bearing, which has a lower speed rating, uses as many rollers as possible, giving it the highest possible load rating.

• Accommodate misalignment and axial displacement within the bearing
• Very high radial load carrying capacity
• Provide frictionless axial movement
• Long bearing system life

Dimensions

d	75 mm	Bore diameter
D	105 mm	Outside diameter
B	54 mm	Width
d2	≈83.6 mm	Shoulder diameter of inner ring
D1	≈95.5 mm	Shoulder or recess diameter of outer ring
s2	max.7.1 mm	Permissible axial displacement
r1,2	min.1 mm	Chamfer dimension

Abutment dimensions

da	min.79.6 mm	Diameter of shaft abutment
da	max.83.6 mm	Diameter of shaft abutment
Da	min.86 mm	Diameter of housing abutment
Da	max.100.4 mm	Abutment diameter housing
ra	max.1 mm	Radius of fillet

Calculation data

SKF performance class		SKF Explorer
Basic dynamic load rating	C	204 kN
Basic static load rating	C0	325 kN
Fatigue load limit	Pu	38 kN
Limiting speed		140 r/min
Misalignment factor	k1	0.073
Internal clearance factor	k2	0.154
