They are used almost exclusively in work roll applications such as rolling mills. SKF manufactures four-row tapered roller bearings in TQO and TQI designs, in many variants and with different features.

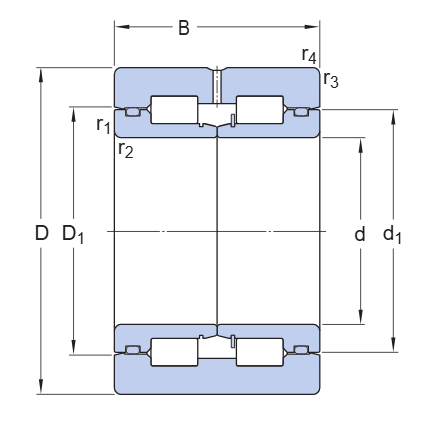

| d |
220.662 mm
|
Bore diameter |
|---|---|---|
| D |
314.325 mm
|
Outside diameter |
| B |
239.712 mm
|
Total bearing width over inner rings |
| T |
239.712 mm
|
Total bearing width over outer rings |
| d1 |
≈241 mm
|
Abutment diameter shaft |
| D1 |
≈281 mm
|
Abutment diameter housing |
| r1,2 |
min.1.5 mm
|
Chamfer dimension inner ring |
| r3,4 |
min.3.3 mm
|
Outer ring radius (chamfer) |
| SKF performance class |
SKF Explorer
|
|
| Basic dynamic load rating | C |
2 120 kN
|
| Basic static load rating | C0 |
4 000 kN
|
| Fatigue load limit | Pu |
365 kN
|
| Comparative radial load rating | CF |
510 kN
|
| Comparative axial load rating | CFa |
98 kN
|
| Thrust factor | K |
1.49
|
| Limiting value | e |
0.4
|
| Calculation factor | Y1 |
1.7
|
| Calculation factor | Y2 |
2.5
|
| Calculation factor | Y0 |
1.6
|
| Candidate for remanufacturing | Yes |
| Bearing part | Complete bearing |
| Design | TQO |
| Number of rows | 4 |
| Locating feature, bearing outer ring | None |
| Bore type | Cylindrical with helical groove |
| Cage | Sheet metal |
| Arrangement of contact angle (double-row bearing) | Not applicable |
| Matched arrangement | No |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | With |
| Product net weight | 56.3 kg |
| eClass code | 23-05-09-10 |
(220.662X314.325X239.712) (331156G) (BT4-0040 E8/C355)
| Weight | 56.3 kg |
|---|---|
| Size (mm) | |
| Colour |
