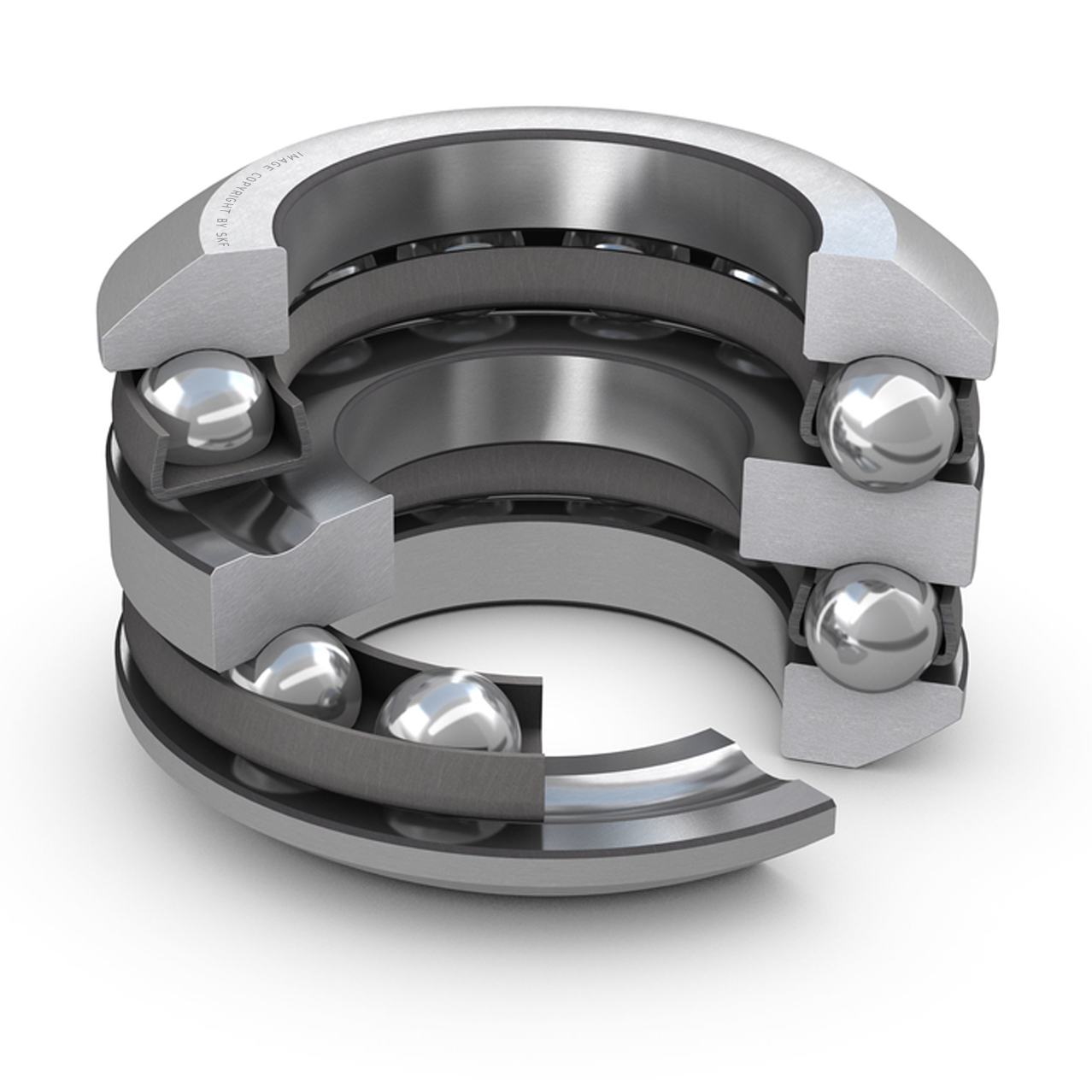

Double direction thrust ball bearing with sphered housing washers

Double direction thrust ball bearings with a sphered housing washer can accommodate axial loads in both directions, but they must not be subjected to any radial load.

Many of the components are interchangeable. These bearings can be used together with a sphered seat washer adjacent to the housing washer or adjacent to a machine component manufactured with a sphered surface. The shaft washers have a ground bore that enables an interference fit.

  • Separable design facilitates mounting/dismounting and maintenance inspections
  • Interchangeable components
  • Ground bore of the shaft washers enable interference fits
  • Accommodate initial misalignment
  • Used with a sphered seat washer

Dimensions

d
30 mm
 Bore diameter
D
78 mm
 Outside diameter
H
54.1 mm
 Height
H1
59 mm
 Height bearing including seat washer
D1
≈42 mm
 Inner diameter housing washer
D2
60 mm
 Inner diameter sphered seat washer
D3
82 mm
 Outside diameter sphered housing washer
B
12 mm
 Height shaft washer
C
8.5 mm
 Height sphered housing washer
R
64 mm
 Radius sphered housing washer
s
23.5 mm
 Centre height housing washer sphere
r1,2
min.1 mm
 Chamfer dimension housing washer
r3,4
min.0.6 mm
 Chamfer dimension shaft washer

Calculation data

Basic dynamic load rating C
61.8 kN
Basic static load rating C0
122 kN
Fatigue load limit Pu
4.5 kN
Reference speed
2 200 r/min
Limiting speed
3 000 r/min
Minimum load factor A
0.077
Add to Enquiry
SKU: 54309-SKF Categories: , ,
SKF

Description

Properties

Axial load capability Double-direction
Number of rows 2
Cage Sheet metal
Housing washer type Sphered
Tolerance class Normal
Material, bearing Bearing steel
Coating Without

Associated products

Seat washer
U 308

(30X78X54.1) (30X78X59)

Additional information

Weight 1.231 kg
