53306

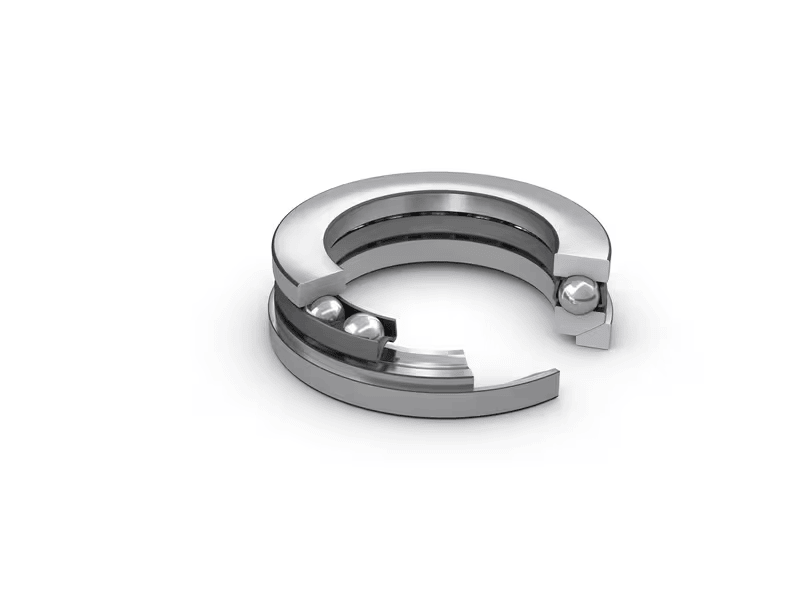

Single direction thrust ball bearing with sphered housing washer

Single direction thrust ball bearings, with sphered housing washer, can accommodate axial loads in one direction. They must not be subjected to any radial load.

Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit. The sphered housing washers can accommodate initial misalignment when configured correctly with a sphered seat washer or a machine component with a sphered surface.

  • Separable design facilitates mounting/dismounting and maintenance inspections
  • Interchangeable components
  • Ground bore of shaft washers enables interference fit
  • Sphered housing washers can accommodate initial misalignment

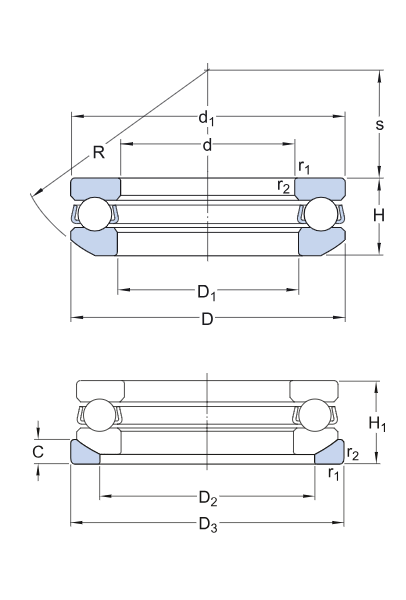

Dimensions

d
30 mm
 Bore diameter
D
60 mm
 Outside diameter
H
22.6 mm
 Height
H1
25 mm
 Height bearing including seat washer
d1
≈60 mm
 Outside diameter shaft washer
D1
≈32 mm
 Inner diameter housing washer
D2
45 mm
 Inner diameter sphered seat washer
D3
62 mm
 Outside diameter sphered housing washer
C
7 mm
 Height sphered housing washer
R
50 mm
 Radius sphered housing washer
s
22 mm
 Centre height housing washer sphere
r1,2
min.1 mm
 Chamfer dimension washer

Calculation data

Basic dynamic load rating C
35.8 kN
Basic static load rating C0
65.5 kN
Fatigue load limit Pu
2.4 kN
Reference speed
3 800 r/min
Limiting speed
5 300 r/min
Minimum load factor A
0.026
Add to Enquiry
SKU: 53306-SKF Categories: , ,
SKF

Description

Properties

Axial load capability Single-direction
Number of rows 1
Cage Sheet metal
Housing washer type Sphered
Tolerance class Normal
Material, bearing Bearing steel
Coating Without

Associated products

Seat washer
U 306

(30X60X22.6) (30X60X25)

Additional information

Weight 0.2588 kg
Size (mm)

Colour
