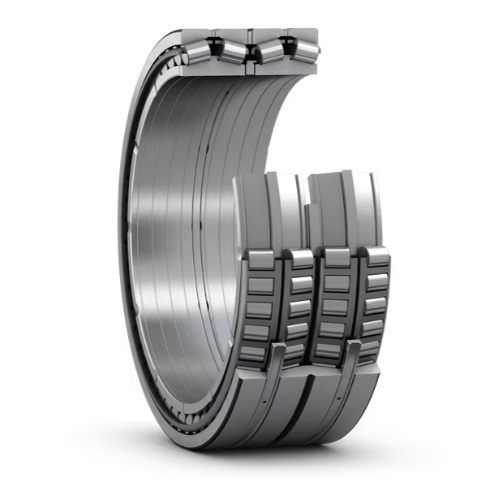

They are used almost exclusively in work roll applications such as rolling mills. SKF manufactures four-row tapered roller bearings in TQO and TQI designs, in many variants and with different features.
| d |
558.8 mm
|
Bore diameter |
|---|---|---|
| D |
736.6 mm
|
Outside diameter |
| B |
322.262 mm
|
Total bearing width over inner rings |
| T |
322.262 mm
|
Total bearing width over outer rings |
| d1 |
≈604 mm
|
Abutment diameter shaft |
| D1 |
≈678 mm
|
Abutment diameter housing |
| r1,2 |
min.3.2 mm
|
Chamfer dimension inner ring |
| r3,4 |
min.6.4 mm
|
Outer ring radius (chamfer) |
| Basic dynamic load rating | C |
6 270 kN
|
|---|---|---|
| Basic static load rating | C0 |
16 600 kN
|
| Fatigue load limit | Pu |
1 220 kN
|
| Comparative radial load rating | CF |
1 660 kN
|
| Comparative axial load rating | CFa |
279 kN
|
| Thrust factor | K |
1.7
|
| Limiting value | e |
0.35
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
2.9
|
| Calculation factor | Y0 |
1.8
|
| Candidate for remanufacturing | Yes |
| Bearing part | Complete bearing |
| Design | TQO |
| Number of rows | 4 |
| Locating feature, bearing outer ring | None |
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Arrangement of contact angle (double-row bearing) | Not applicable |
| Matched arrangement | No |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | With |
| Product net weight | 366 kg |
| eClass code | 23-05-09-10 |
(558.8X736.6X322.262) (331165A)
| Weight | 366 kg |
|---|---|
| Size (mm) | |
| Colour |
