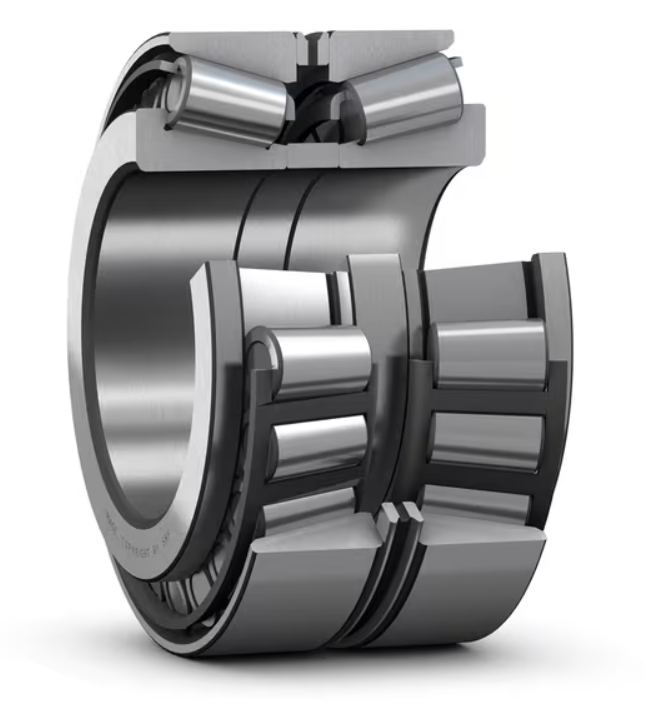

The precision manufactured intermediate rings between the innner and outer rings enable a defined internal clearance or preload to be achieved when mounted. Matched tapered roller bearings are typically used in gearboxes, hoisting equipment, rolling mills, and machines in the mining industry.
| Bore diameter | 170 mm |
| Outside diameter | 260 mm |
| Width, total | 162 mm |
| Width, inner ring | 162 mm |
| Width, outer ring | 134 mm |
| Contact angle | 16.5 ° |
| Basic dynamic load rating | 1 071 kN |
| Basic static load rating | 1 830 kN |
| Reference speed | 1 500 r/min |
| Limiting speed | 2 200 r/min |
| SKF performance class | SKF Explorer |
| Bearing part | Complete bearing |
| Number of rows | 2 |
| Locating feature, bearing outer ring | None |
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Matched arrangement | Back-to-back (O) |
| Number of bearings in matched set | 2 |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | With |
| Product net weight | 25.9 kg |
| eClass code | 23-05-09-10 |
(170X260X162) (32034T162XDB31VS118)
| Weight | 25.9 kg |
|---|---|
| Size (mm) | |
| Colour |
