314833 B

Backing bearing

Backing bearings have been specially developed for cold rolling mills of the cluster type, but can also be used for other applications, such as straightening or bending machines.

These bearings have a particularly thick-walled outer ring and can be mounted on stationary support shafts to form backup or straightening rolls.

  • Super-precision quality for tolerances of run-out
  • Very tight tolerances for the cross-sectional height
  • Designed for high loads

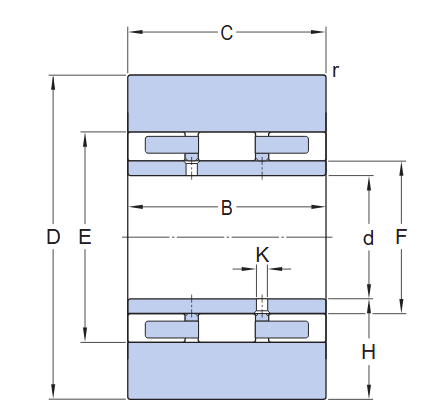

Dimensions

D
300 mm
 Outside diameter
d
130 mm
 Bore diameter
H
max.84.965 mm
 Section height
B
172.64 mm
 Total bearing width over inner ring(s)
C
172.64 mm
 Total bearing width over outer ring(s)
F
159.38 mm
 Raceway diameter inner ring
E
218.46 mm
 Raceway diameter outer ring
r
min.2.7 mm
 Chamfer dimension outer ring
Lubrication hole(s)
K
8 mm
 Diameter lubrication hole
12
 Number of holes

Calculation data

Basic dynamic load rating C
1 170 kN
Basic static load rating C0
1 800 kN
Fatigue load limit Pu
200 kN
Maximum dynamic radial loads Fr
max.830 kN
Maximum static radial loads F0r
max.1 180 kN
Add to Enquiry
SKU: 314833 B-SKF Categories: , ,
SKF

Description

Properties

Bearing part Complete bearing
Number of rows 3
Bore type Cylindrical
Cage Machined metal
Design Without axial guidance
Radial internal clearance NSTD
Tolerance class NSTD
Coating Without
Sealing Without
Relubrication feature With

Logistics

Product net weight 72.3 kg
UNSPSC code 31171505

(130X300X172.64) (314833B)

Additional information

Weight 72.3 kg
Size (mm)

Colour
