30208 R

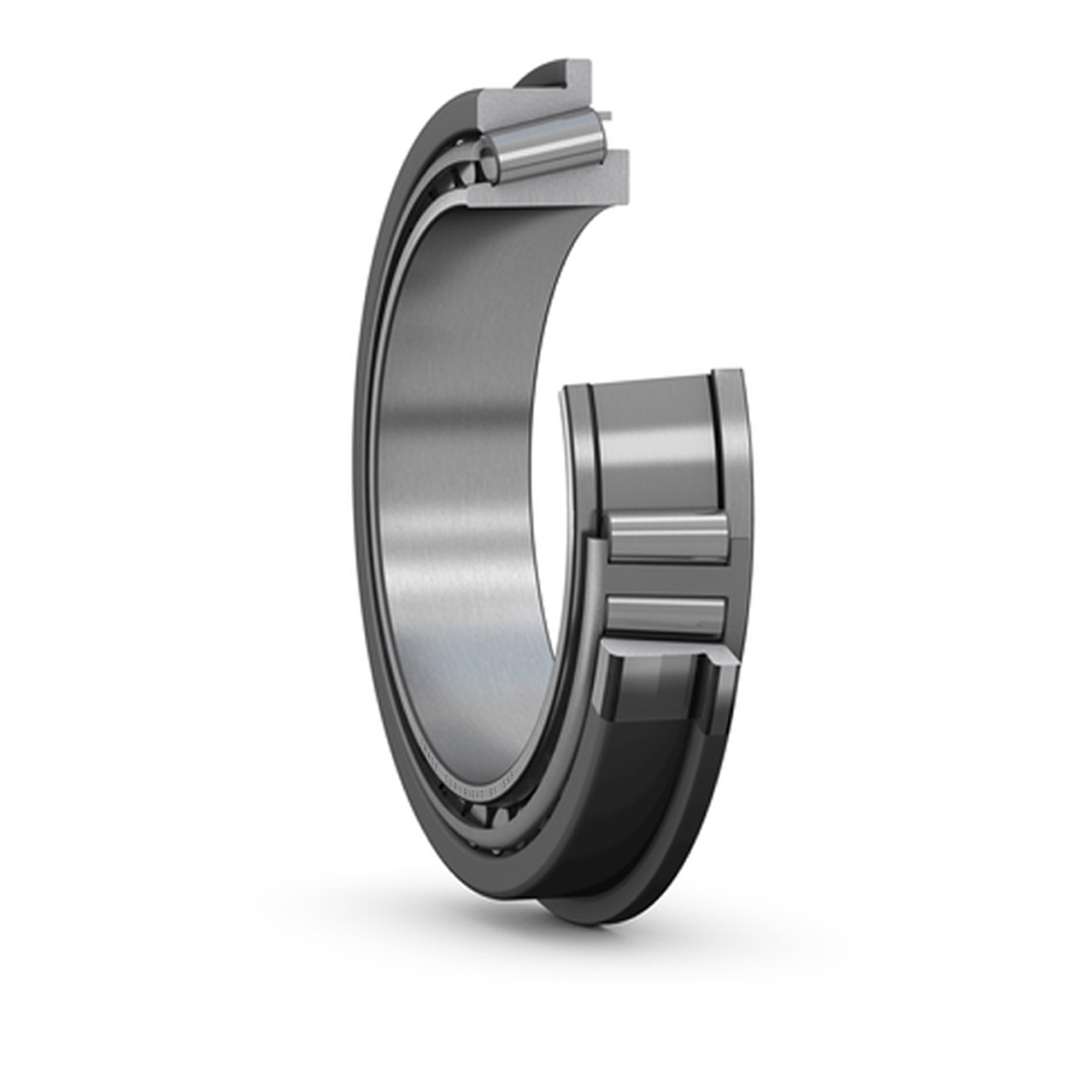

Single row tapered roller bearing with flanged outer ring

Single row tapered roller bearings with flanged outer rings are easy to locate axially in the housing.

Because housing shoulders are not required, the housing bore can be manufactured more easily and cost-effectively. The bearings can accommodate combined radial and axial loads and provide low friction during operation. By combining two tapered roller bearings, a rigid bearing arrangement can be achieved.

  • High radial and axial load carrying capacity
  • Accommodate axial loads in one direction
  • Low friction and long service life
  • Separable and interchangeable components
  • Flange on the outer ring for easy location in the housing

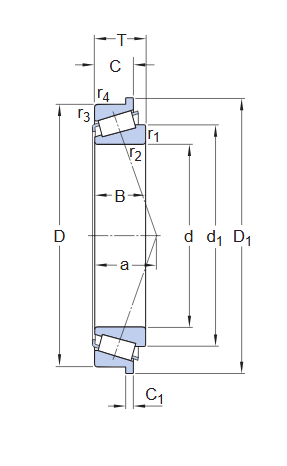

Dimensions

d
40 mm
 Bore diameter
D
80 mm
 Outside diameter
T
19.75 mm
 Total width
d1
≈57.55 mm
 Shoulder diameter of inner ring
D1
85 mm
 Diameter of flange
B
18 mm
 Width of inner ring
C
16 mm
 Width of outer ring
C1
4 mm
 Width of flange
r1,2
min.1.5 mm
 Chamfer dimension of inner ring
r3,4
min.1.5 mm
 Chamfer dimension of outer ring
a
16.094 mm
 Distance side face to pressure point
Abutment dimensions - 30208 R

Abutment dimensions

da
max.49 mm
 Diameter of shaft abutment
db
min.48.5 mm
 Diameter of shaft abutment
ra
max.1.5 mm
 Radius of shaft fillet

Calculation data

SKF performance class
SKF Explorer
Basic dynamic load rating C
75.8 kN
Basic static load rating C0
68 kN
Fatigue load limit Pu
7.65 kN
Reference speed
7 000 r/min
Limiting speed
8 500 r/min
Limiting value e
0.37
Calculation factor Y
1.6
Calculation factor Y0
0.9
Add to Enquiry
SKU: 30208 R-SKF Categories: , , ,
SKF

Description

Properties

Bearing part Complete bearing
Number of rows 1
Locating feature, bearing outer ring Flange
Bore type Cylindrical
Cage Sheet metal
Arrangement of contact angle (double-row bearing) Not applicable
Matched arrangement No
Coating Without
Sealing Without
Lubricant None
Relubrication feature Without
Unit system Metric

Logistics

Product net weight 0.44 kg
eClass code 23-05-09-10
UNSPSC code 31171516

(40X80X19.75) (30208RJ2Q) (30208R)

Additional information

Weight 0.44 kg
