23056 CACK/W33

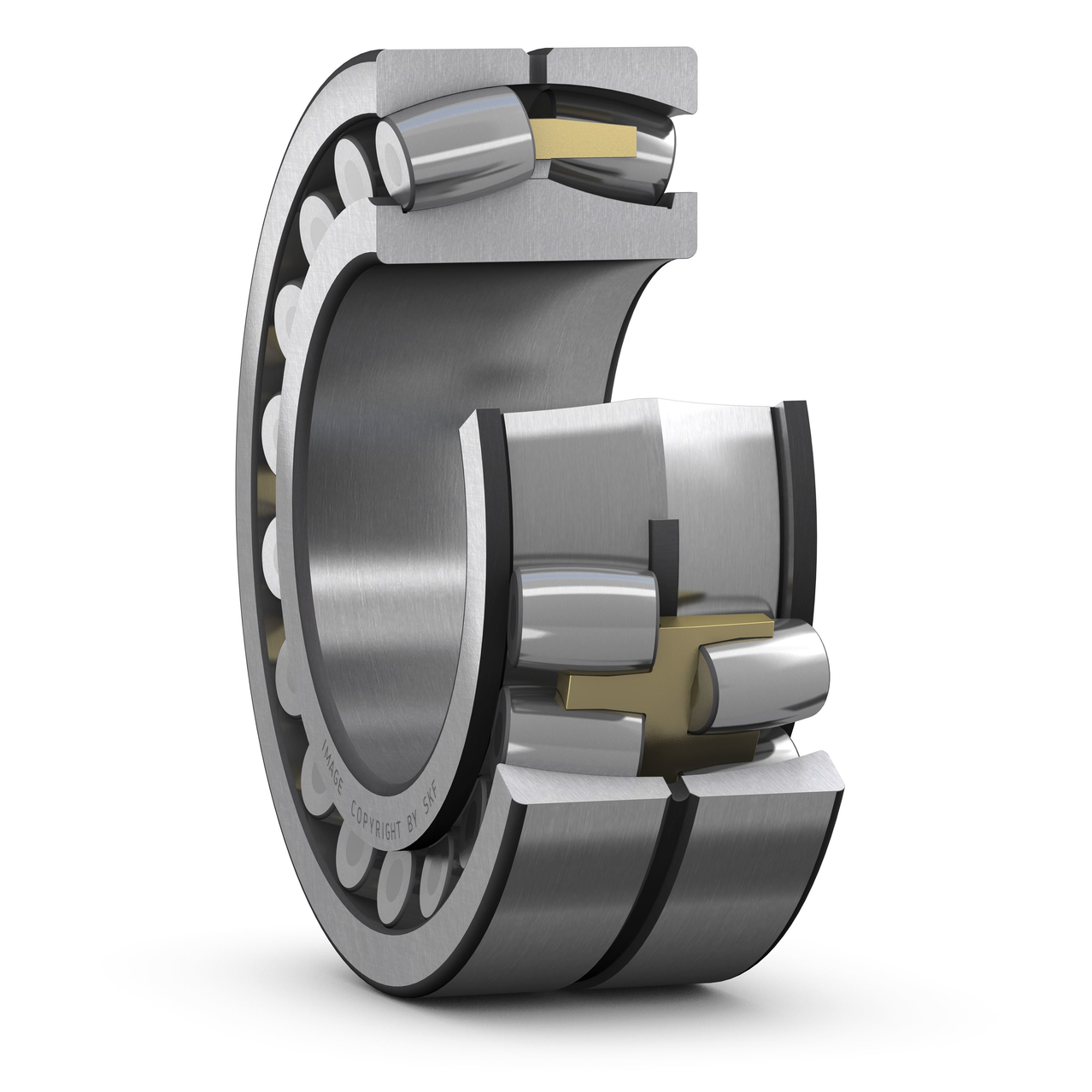

Spherical roller bearing with tapered bore and relubrication features
Spherical roller bearings can accommodate heavy loads in both directions.
They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
- Accommodate misalignment
- High load carrying capacity
- Relubrication features
- Low friction and long service life
- Increased wear resistance
Dimensions
| d |
280 mm
|
Bore diameter |
| D |
420 mm
|
Outside diameter |
| B |
106 mm
|
Width |
| d2 |
≈326 mm
|
Shoulder diameter of inner ring |
| D1 |
≈380 mm
|
Shoulder/recess diameter of outer ring |
| b |
16.7 mm
|
Width of lubrication groove |
| K |
9 mm
|
Diameter of lubrication hole |
| r1,2 |
min.4 mm
|
Chamfer dimension |
Abutment dimensions
| Da |
max.405 mm
|
Diameter of housing abutment |
| ra |
max.3 mm
|
Radius of fillet |
Calculation data
| SKF performance class |
|
SKF Explorer
|
| Basic dynamic load rating |
C |
1 747 kN
|
| Basic static load rating |
C0 |
2 750 kN
|
| Fatigue load limit |
Pu |
212 kN
|
| Reference speed |
|
1 300 r/min
|
| Limiting speed |
|
1 600 r/min
|
| Limiting value |
e |
0.23
|
| Calculation factor |
Y1 |
2.9
|
| Calculation factor |
Y2 |
4.4
|
| Calculation factor |
Y0 |
2.8
|
Tolerance class
| Dimensional tolerances |
Normal
|
| Radial run-out |
P5
|
